Introduction

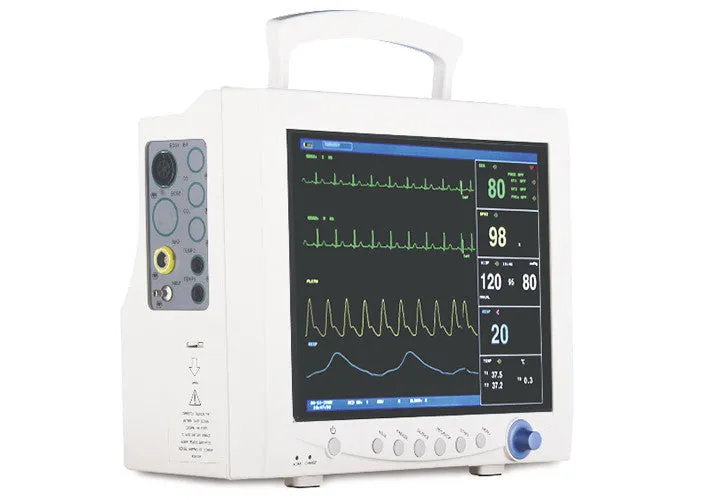

This equipment can monitor such parameters as ECG, RESP, SpO2, NIBP, and Dual- channel TEMP. It integrates parameter measuring module, display and recorder in one device to form a compact and portable device. At the same time, its built-in replaceable battery provides convenience for patient moving.

Main Features

■Elegant appearance, clear marks, standard interface, oxyCRG SCREEN, trend graph, big characters, other BED observation, which are convenient for user.

■Be applicable for adult, pediatric and neonatal.

■Standard parameters of ECG, RESP, NIBP, SpO2 and dual-channel TEMP. Built-in printer, curving handle, moving bracket and hanging bracket are optional.

■Operation interface with Chinese and English. Finish all operations by keys and knobs.(Optional languages: French, German, Italian, Dutch, Portuguese, Turkish, Spanish, Poland.) design with full built-in module, stable and reliable performance.

■12.1'' color TFT LCD with high-resolution displays patient parameter and waveform, and alarm, bed NO, clock, state and other information provided by the monitor synchronously.

■Monitoring contents, scan speed, volume and output contents can be set optionally.

■Storage of 480-hour trend data, and review of 40-second holographic waveform.

■Storage and review of 72-hour ECG waveform.

■Function of NIBP review, storage for up to 2400 NIBP data.

■Adopt digital SpO2 technology, which has strong anti-interference and anti-weak filling capability.

■Calculation of drug concentration.

■Network: connecting with central station, other Bed observation and software updating. Connection mode: wireless and wired.

■Built-in rechargeable battery for uninterrupted monitoring.

■Print ECG, SpO2, RESP, BP and temperature data with one-key.

■Anti-high frequency surgical unit, defibrillation-proof(requirement for special leads).

■Analysis function for heart rate variability(HRV) (optional)

Features

■ 12.1"High brightnees TFT LCD display

■ Portable ,streamline handle design

■ Big figure display

■ ECG Waveforms of 7-lead displayed in one screen

■ 96-hour tabular and graphic trends & date storage

■ Compatible and self identify 3-lead and 5-lead ECG cable

■NIBP dual Over Pressure Protection

■Isolated floating,anti defibrillation protected and anti high-frequency   interference

Standard parameter & configuration

■ 3/5 lead ECG,RESP,SpO2,NIMP,TEMP,PR,Network,Thermal Recorder,Printing paper

Optional parameter & configuration

■ 2-IBP,12 lead ECG,ETCO2

FDA and CE Approved
