Product Details
+

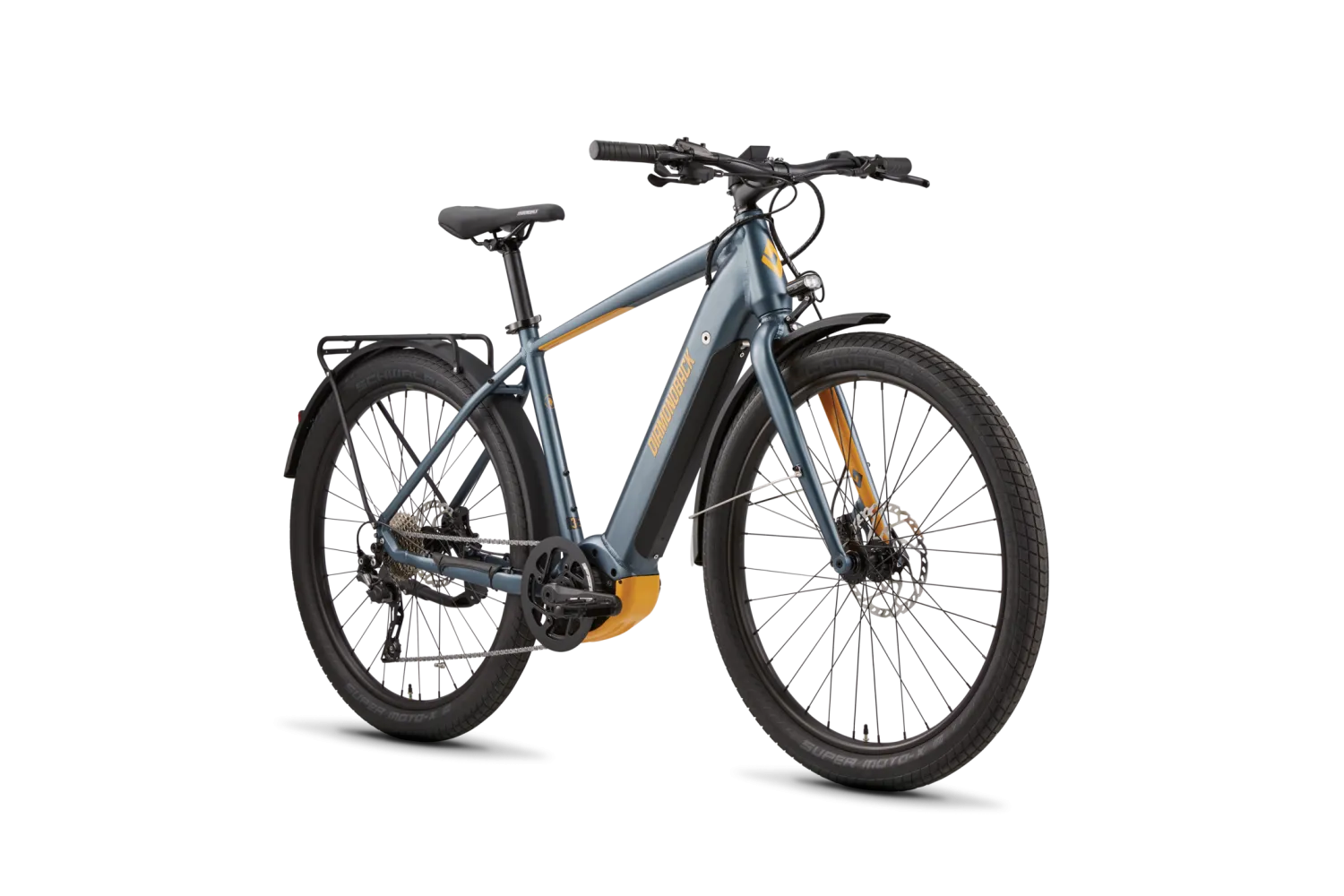

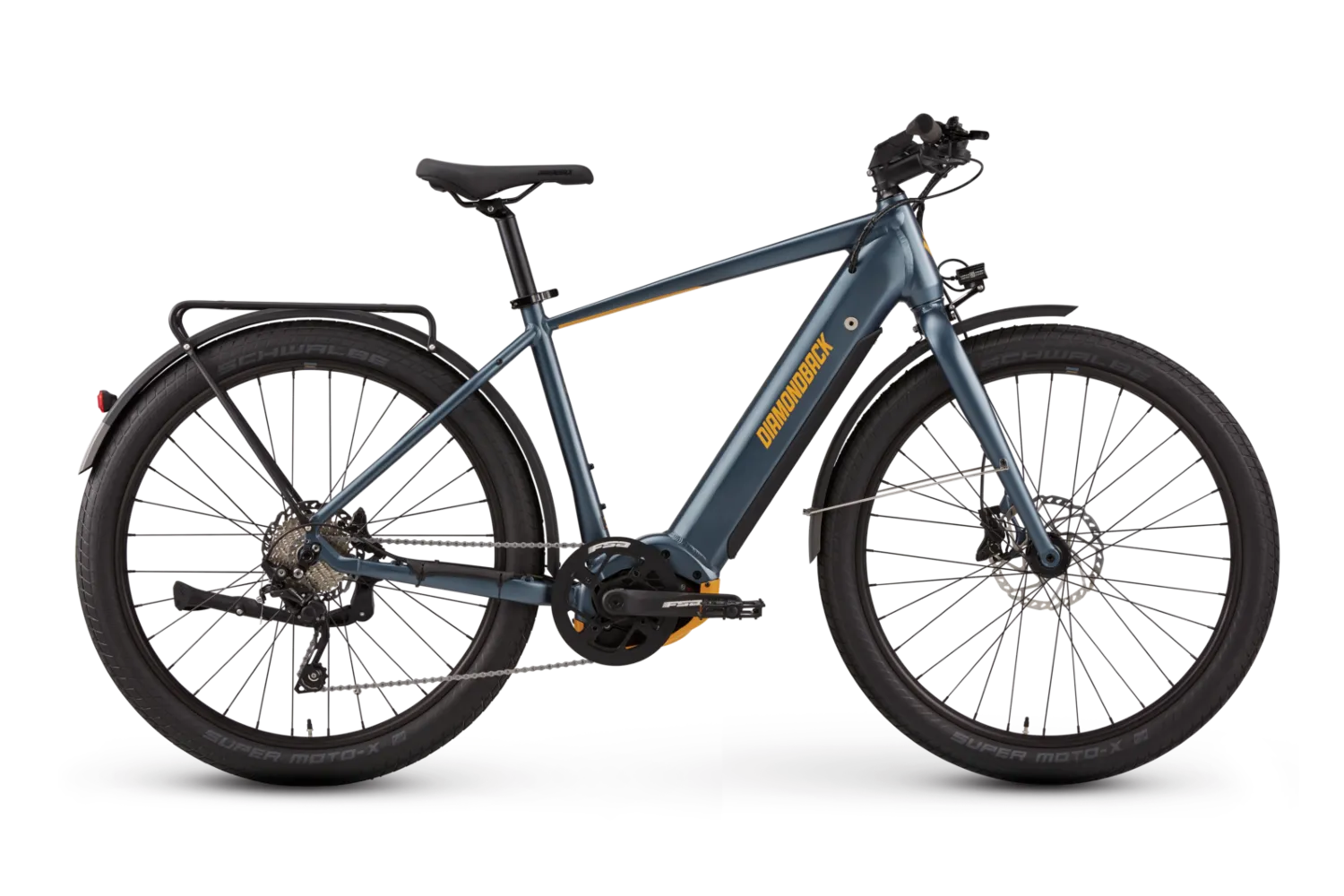

The Class 3 Union 2 electric bike is fully loaded to get things done. Built on a sleek aluminum frame with internal cable routing, this eBike is powered by a Bosch Performance Line Speed motor and a Powertube 500Wh battery. The Bosch Kiox on-board computer provides ride data at your fingertips via a handlebar remote and easy-to-read color display. The Kiox is compatible with Bluetooth heart-rate monitors for the ultimate smart eBike experience. A 10-speed Shimano drivetrain fine-tunes your pedaling, while Tektro hydraulic disc brakes keep your speed under control. Wide tires on 27.5-inch wheels take the sting out of rough pavement. With built-in Lezyne lights, an integrated rack, and reflective fenders, the Union 2 lets you cut through city traffic with ease and confidence.
BRAKES
HYDRAULIC DISC
TIRE SIZE
27.5 X 2.4"
FRAME MATERIAL
ALUMINUM
SPECIFICATIONS
- FRAME Formed 6061 T6 Oversize Aluminum Alloy Thru Axle Dropout, Disc Brake Specific, Powertube Integrated Battery
- REAR SHOCK*

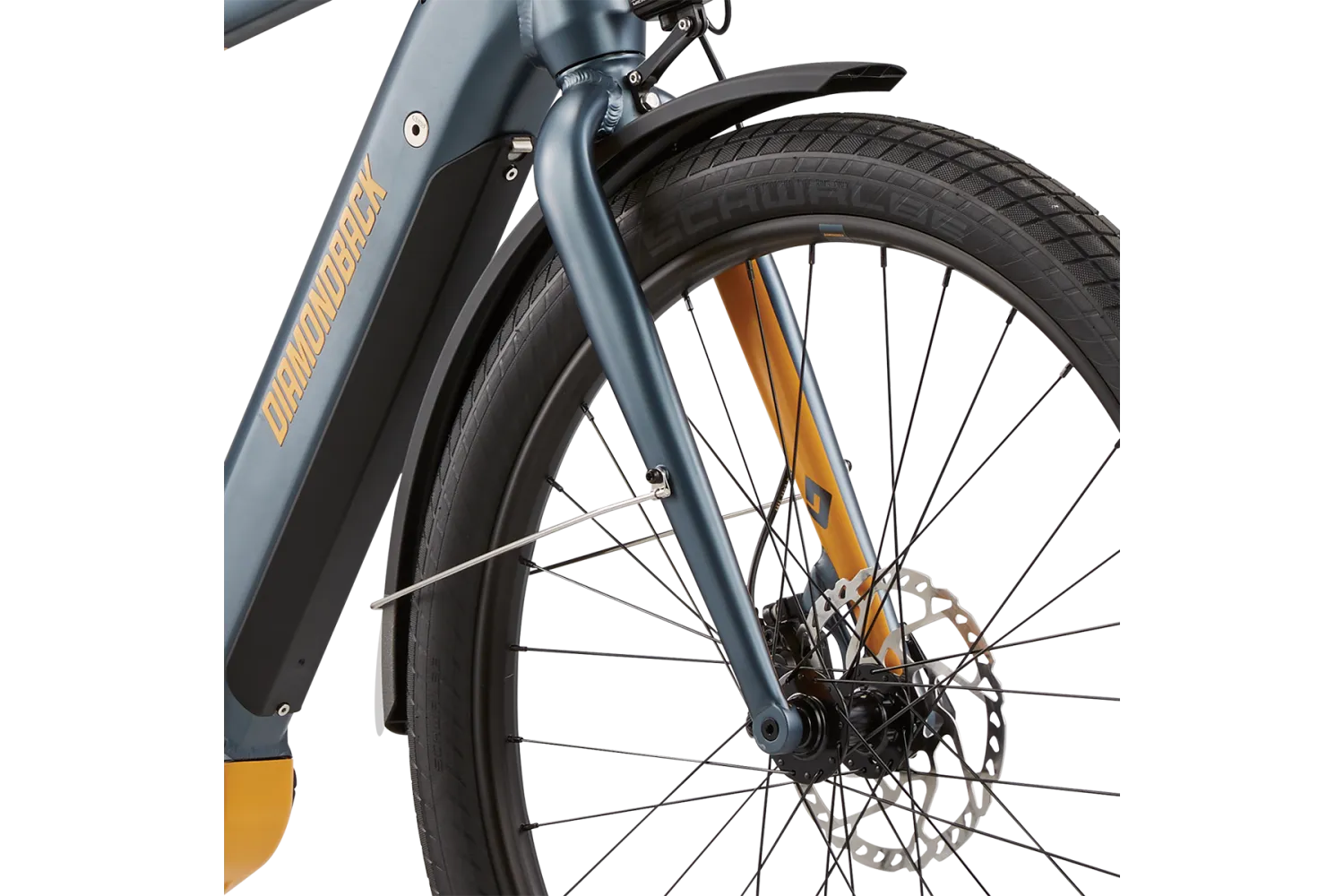

- FORK Formed 6061 T6 w/ Integrated Crown, Disc Brake, Thru Axle
- HEADSET Integrated, Sealed Bearing

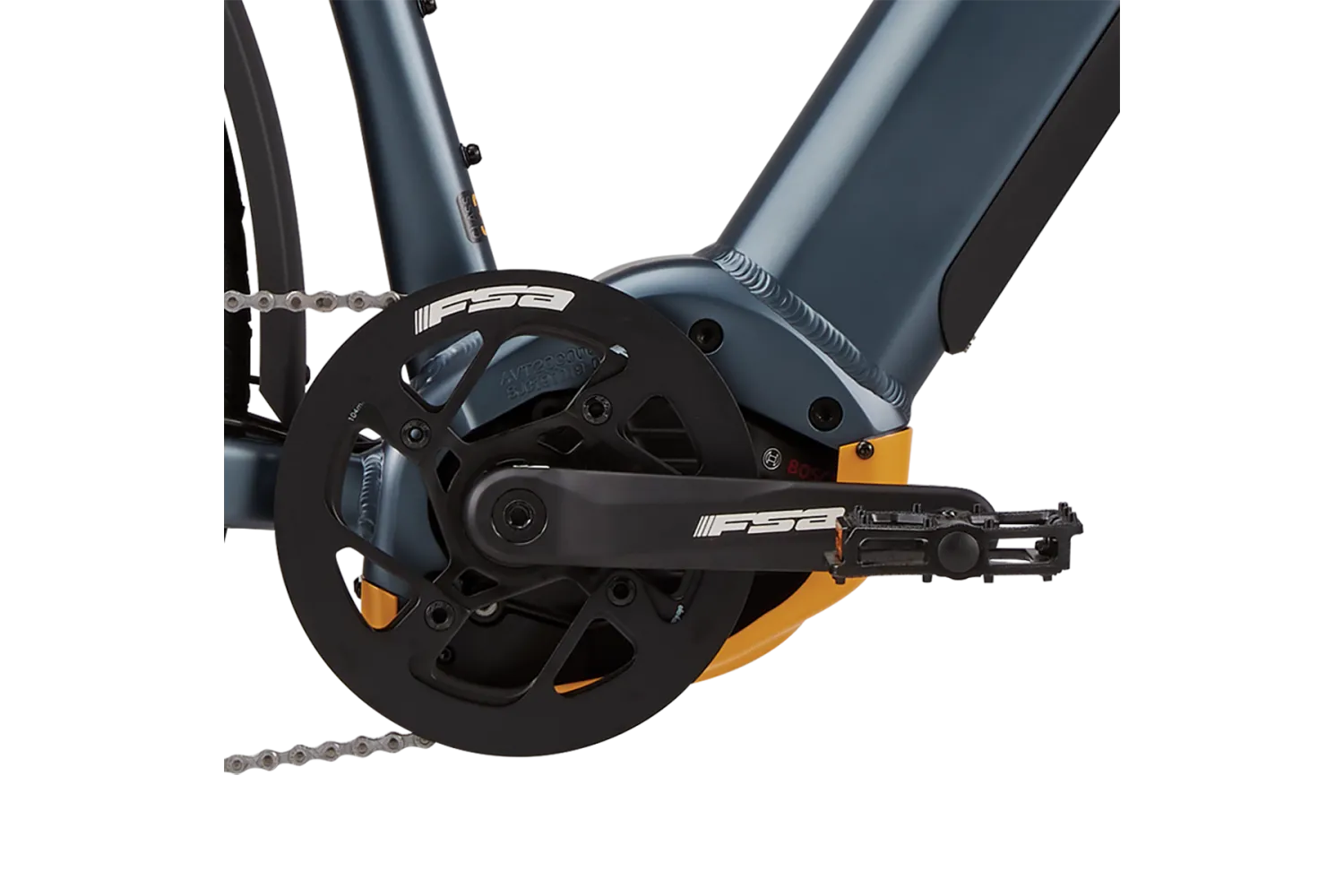

- CRANKS FSA Forged Aluminum for Bosch System
- SPROCKET FSA Forged Spider, 42 tooth w/chainguard, steel
- BOTTOM BRACKET*
- FRONT DERAILLEUR N/A

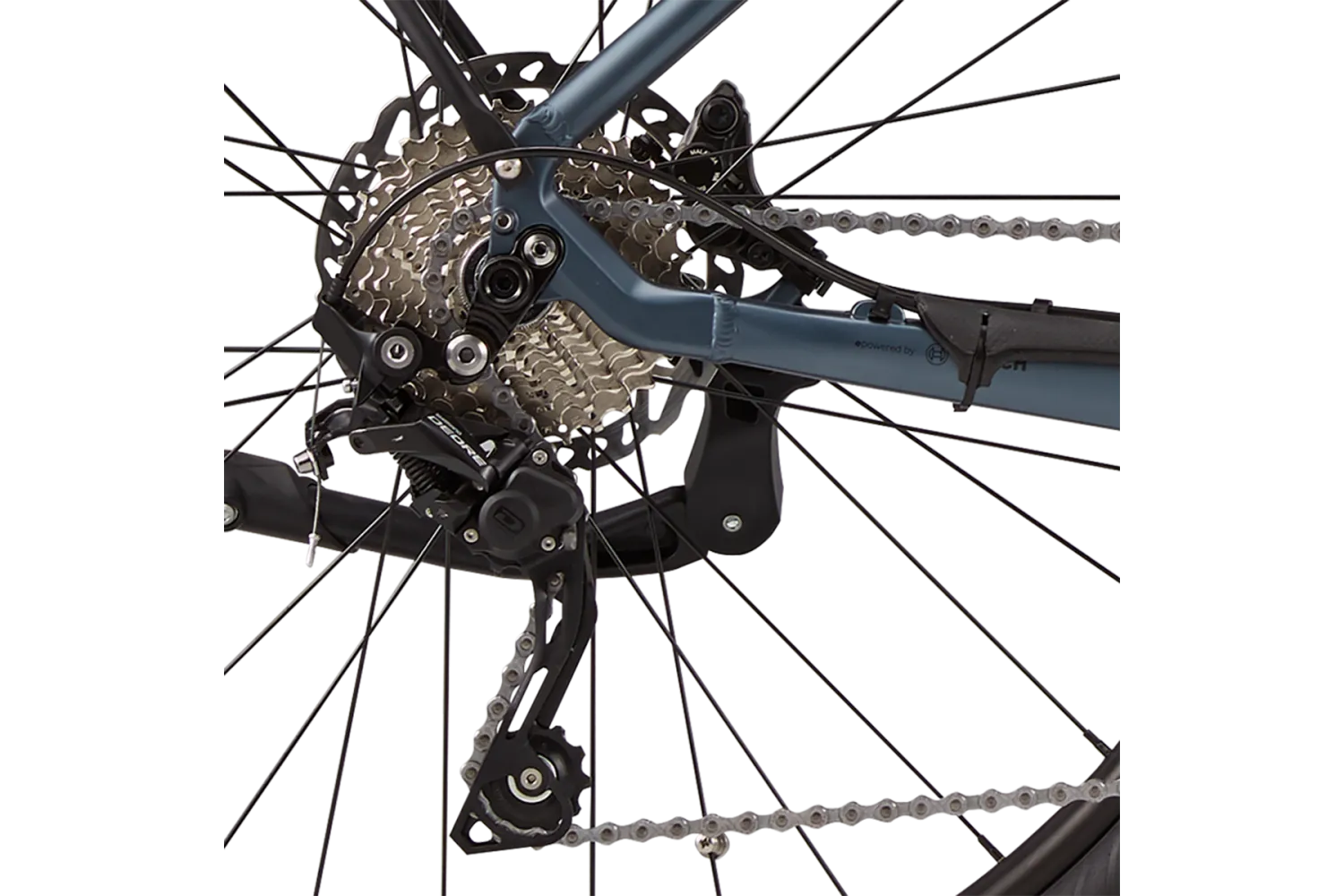

- REAR DERAILLEUR Shimano Deore M610, SGS
- SHIFTER Shimano Deore SL-M6000, 10 Speed
- COGSET Shimano, 11-32 tooth, 10 Speed
- CHAIN KMC x10e EPT, Ebike Specific
- FRONT HUB Formula, Sealed Bearing, Thru Axle
- REAR HUB Formula, Sealed Bearing, Thru Axle
- SPOKES Black w/Silver Nipples
- RIMS Aluminum 27.5", Black Anodized, 25mm ID, Disc Specific, 32 Hole
- TIRES 27.5" x 2.4" Schwalbe Super Moto

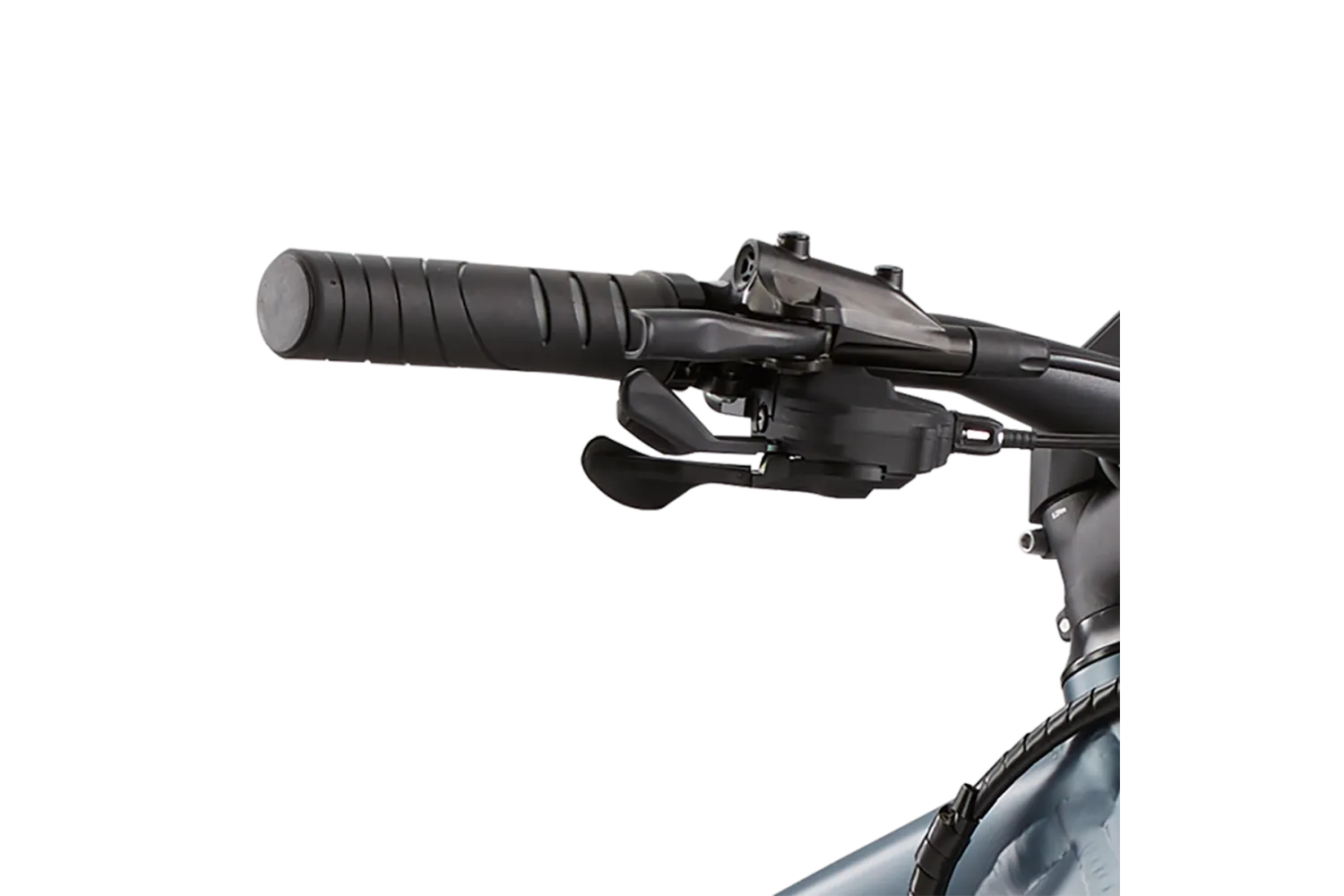

- BRAKE LEVERS TEKTRO HD-M735, 2 Finger Lever
- PEDALS Shoe Friendly Urban Design, Resin Body
- HANDLEBAR Aluminum Alloy
- GRIPS Ergo Comfort Control
- STEM Aluminum Alloy 3d Forged

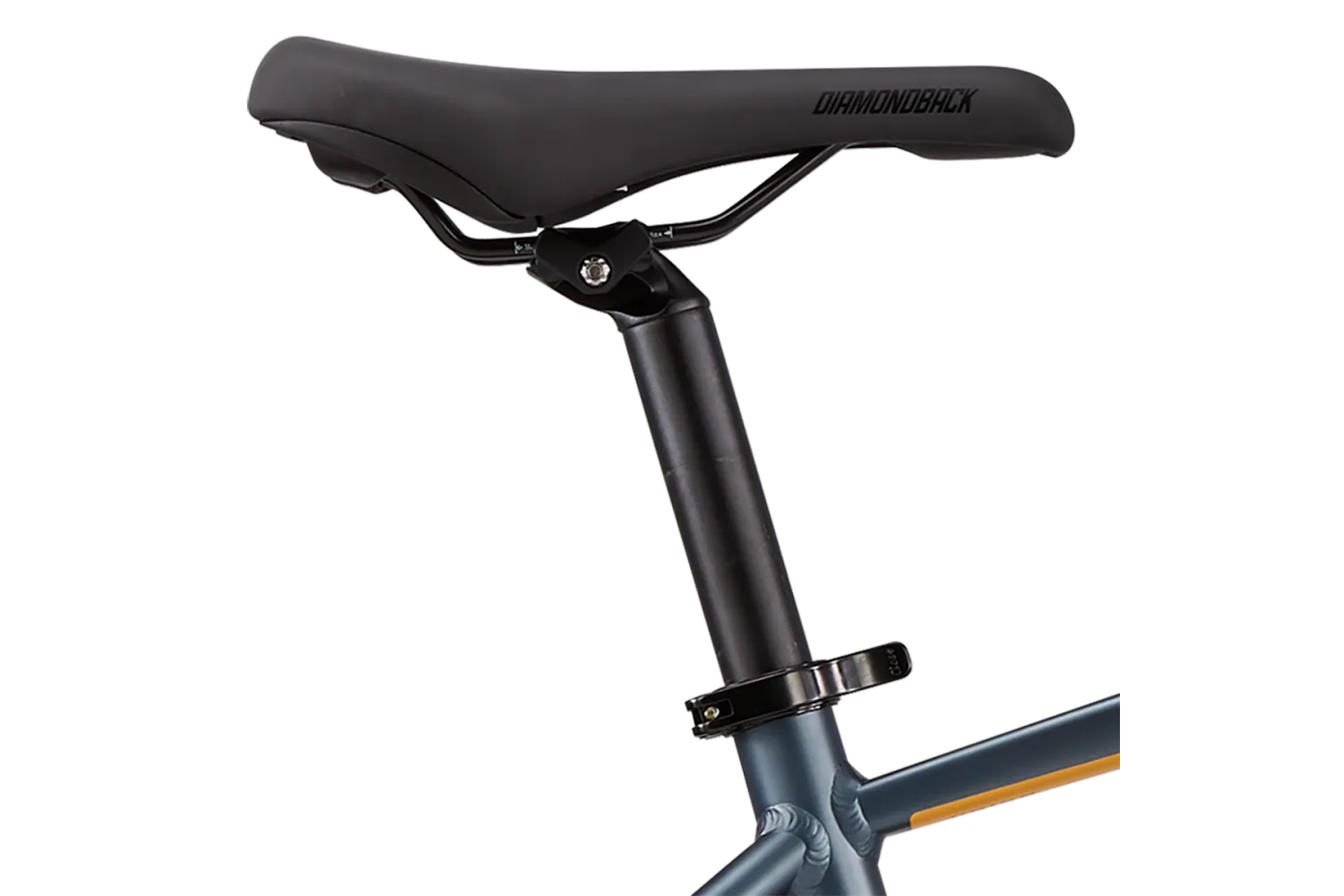

- SEAT Custom Ergo Performance
- SEATPOST Aluminum Alloy Forged Head, 350mm
- DETANGLER*
- EXTRAS Aluminum Structural Extrusion Fenders, with Integrated Rear Rack, Lezyne Headlight & Taillight and Rear Mounted Kickstand
- TAPE*
- BATTERY Bosch PowerTube 500
- CHARGER Bosch 4A
- MOTOR Bosch Performance Line Speed, 85Nm Torque

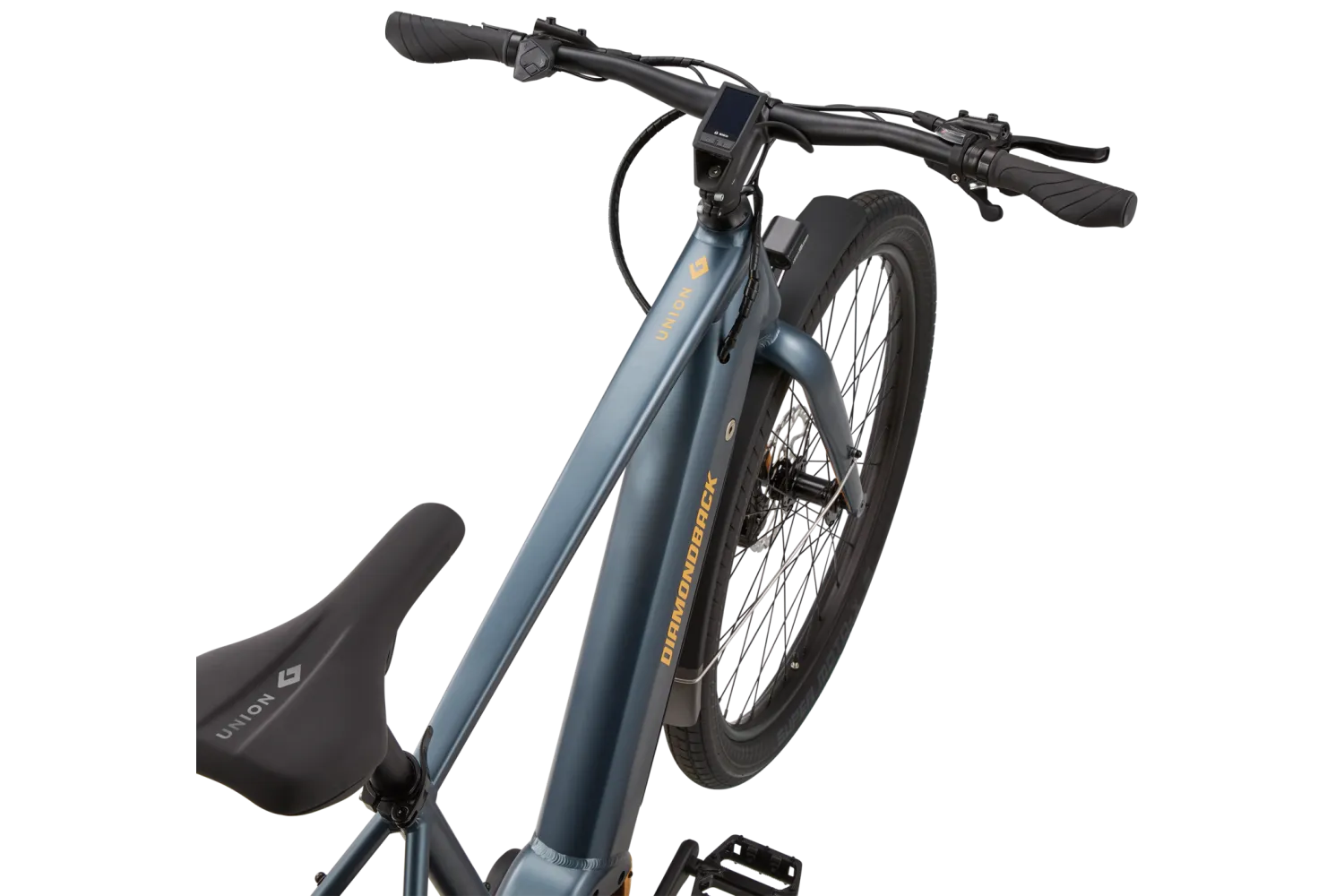

- DISPLAY Bosch Kiox
- RANGE ESTIMATED 35mi/56km to 65mi/104km
- BRAKES Tektro HD-M735, 4 Piston Front 180mm Rotor, 2 Piston Rear 160mm Rotor
