PLB1, the World's smallest PLB
Wherever you are, at sea, on land, the rescueME PLB1 provides the reassurance that global emergency services can be alerted by the press of a button.

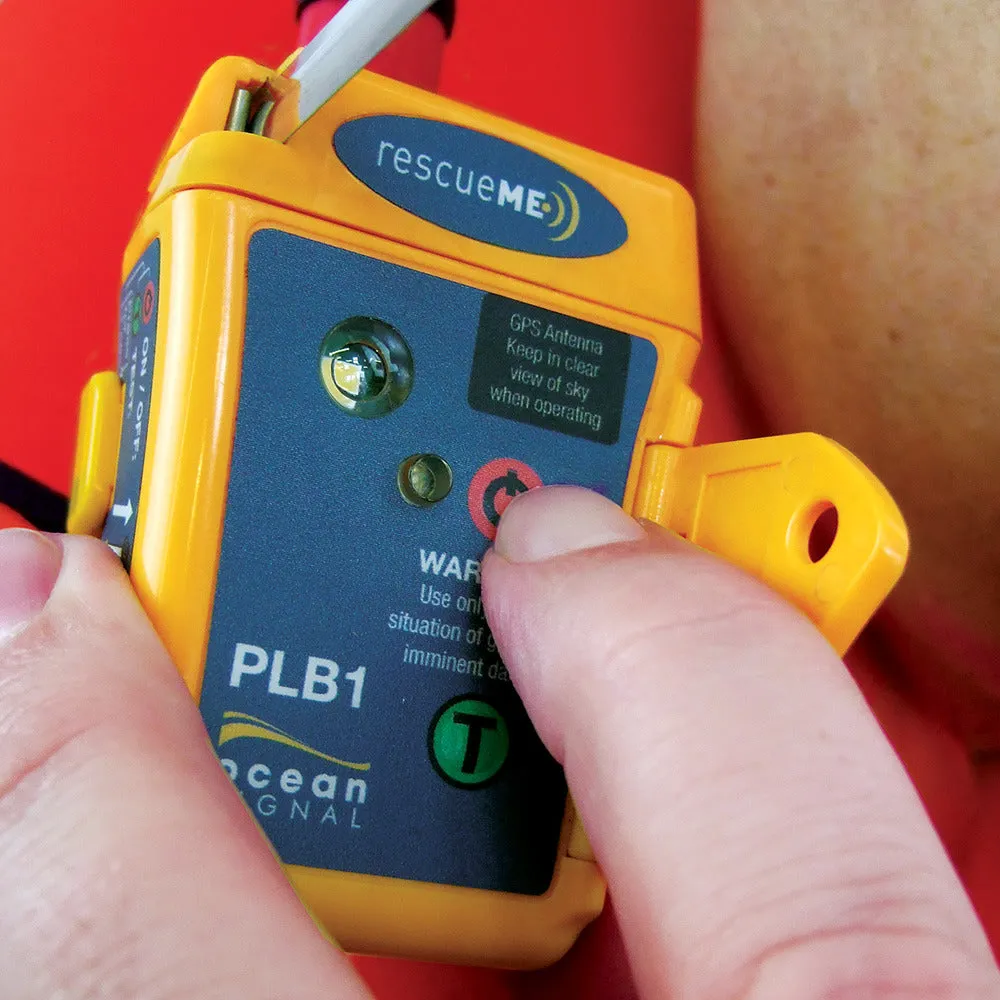

The rescueMe PLB1 can be operated with a single hand in even the most challenging situations. A simple spring loaded flap covers the activation button preventing inadvertent use.
OS-rescueME-PLB-tech-image-01rescueME PLB1 works with the only officially recognised worldwide dedicated search and rescue satellite network (operated by Cospas Sarsat). As this is funded by governments there are NO CHARGES to use this service.

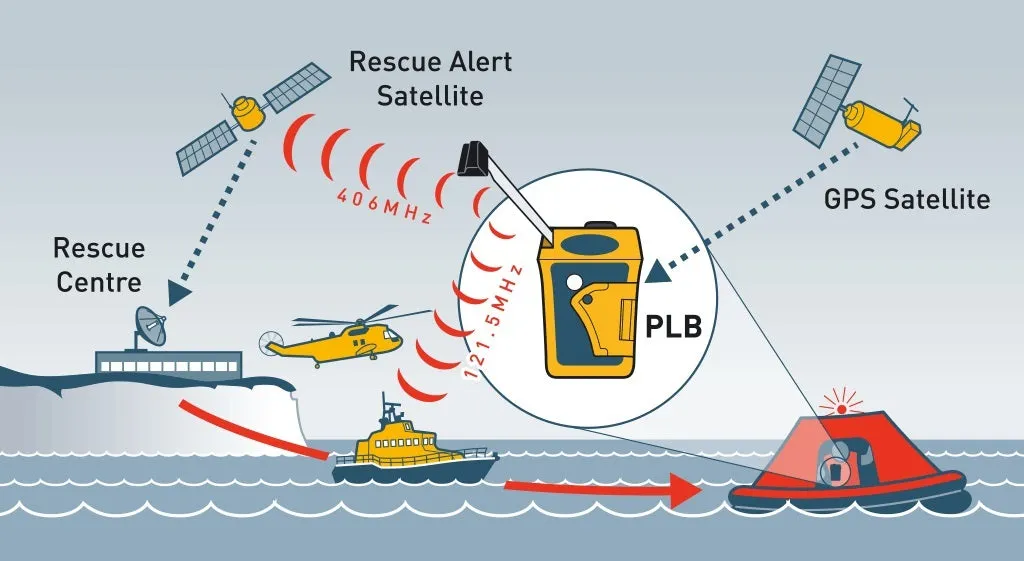

When activated the rescueME PLB1 transmits your position and your ID to a Rescue Coordination Center via satellite link. Rescue services nearest to your are promptly notified of your emergency and regularly advised of your current location to assist prompt rescue.
Features
30% smaller (typ) by volume
Easily fits in lifejacket

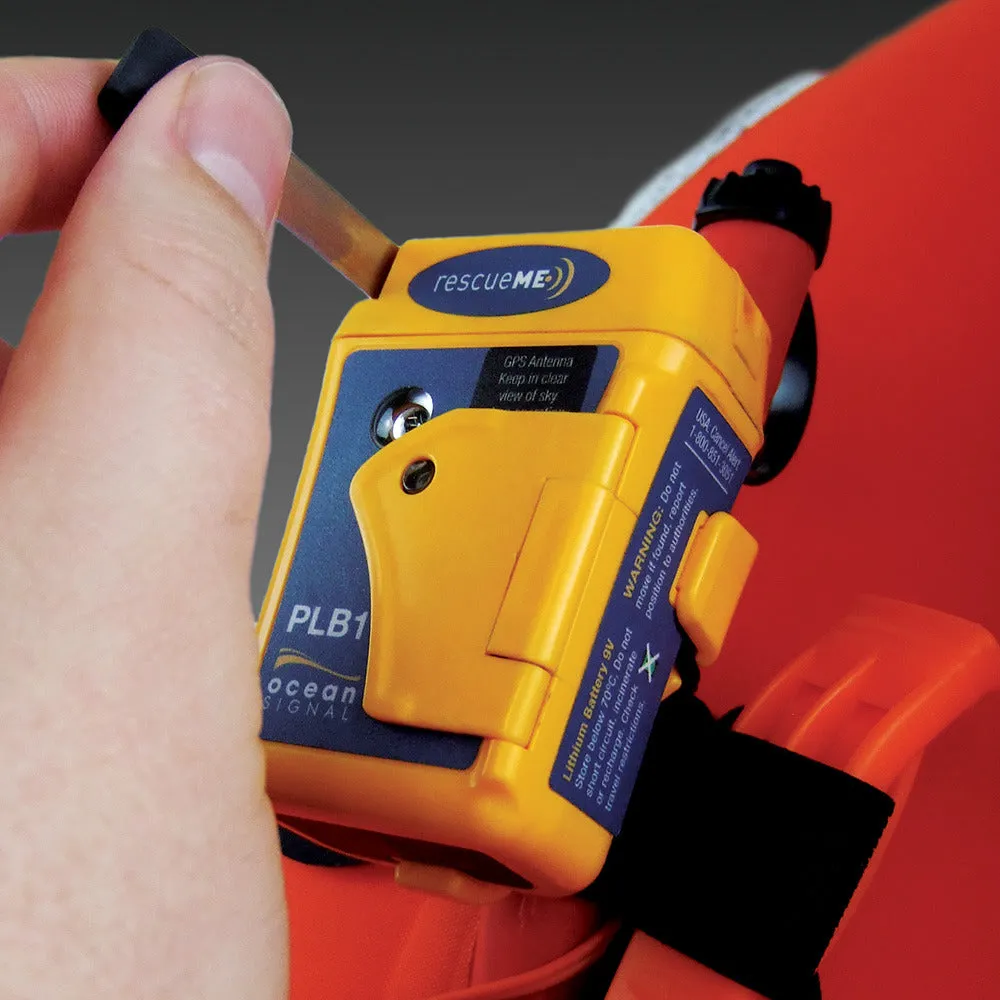

Retractable Antenna
7 Year Battery Life
7 year warranty
24 hour operational life
High brightness strobe light >1candela
66 channel GPS receiver
Unique mounting clip
Operates on the global Cospas Sarsat rescue system
Free to use, no subscription charges
Supplied with free flotation pouch
SPECIFICATIONS
406MHz Satellite Transmitter
Frequency: 406.040MHz
Output Power: 5watts (nominal)
Stability: 2ppb/100ms
Modulation: Phase ±1.1radians (peak)
Emission Designator: 16K0G1D
Encoding: Bi-phase L
Data Rate: 400bps
Duration: 520ms
121.5MHz Homing Beacon
Frequency: 121.5MHz
Stability: ±50ppm
Output Power: 25-100mW PERP
Modulation: Swept Tone AM
Emission Designator: 3K20A3X
Modulation Depth: 85-100%
Sweep Range: 400Hz – 1300Hz
GPS Receiver
- Sensitivity Cold Start: -148dBm
- Sensitivity Re-acquisition: -163dBm
- Satellites channels tracked: 60
- GPS Antenna: Microstrip patch
Low Duty Cycle Strobe Light
- Light Type: High intensity LED
- Output Power: ~1candela
Battery
- Type: Lithium Primary
- Chemistry: Manganese Dioxide (LiMnO2)
- Operational Life: >24hours @ -20°C
Environmental
- Operating Temperature Range: -20°C to 55°C
- Storage Temperature Range: -30°C to 70°C
- Waterproof: 15metres at 20°C
- Drop: 1metre @ -30°C
Dimensions
- Height: 77mm (3.0")
- Width: 51mm (2.1")
- Depth: 32.5mm (1.3")
- Weight: 116g
Standards
- Cospas-Sarsat: T.001 / T.007
- ETSI: EN302 152
- RTCM: SC11020
- FCC: CFR47 part 95K
